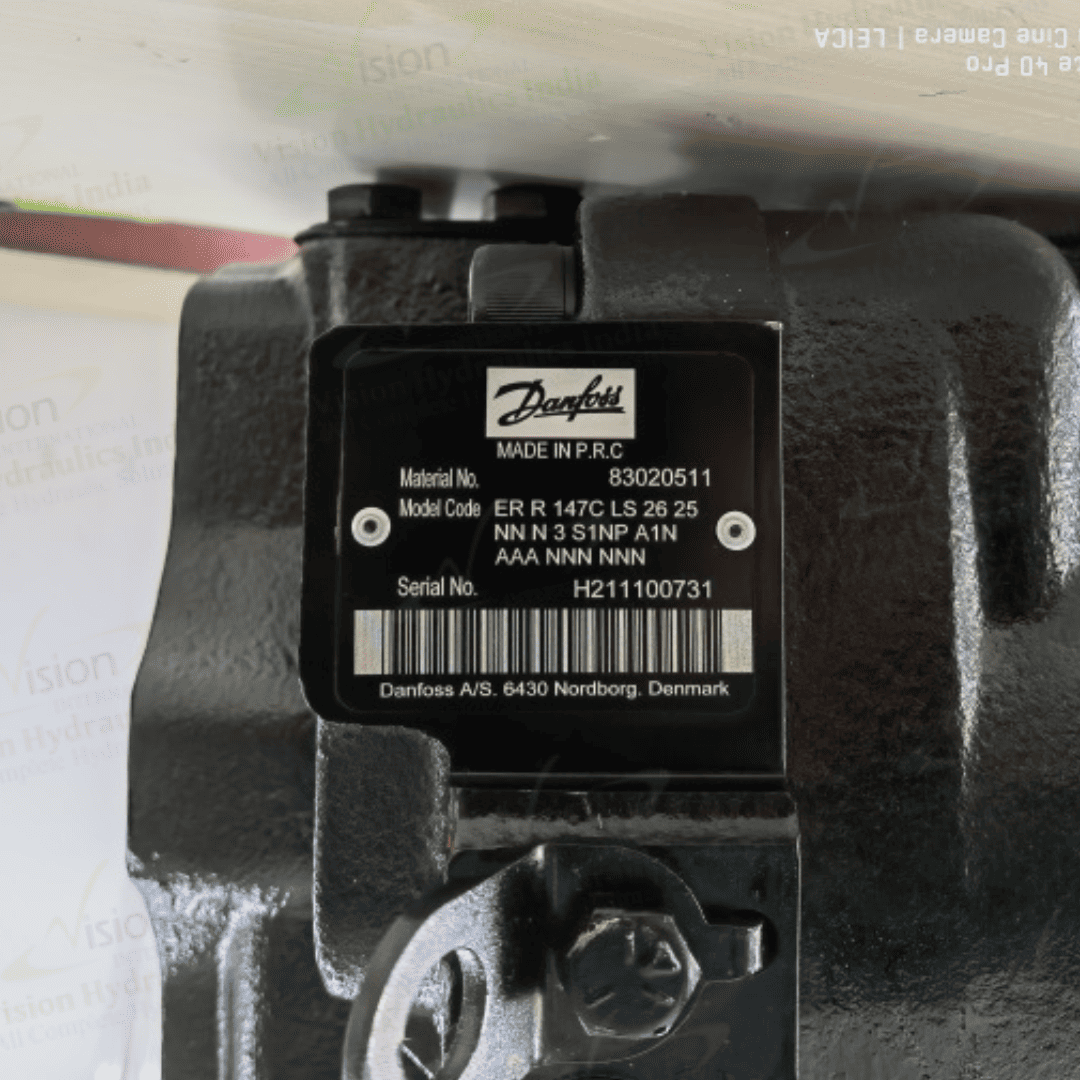

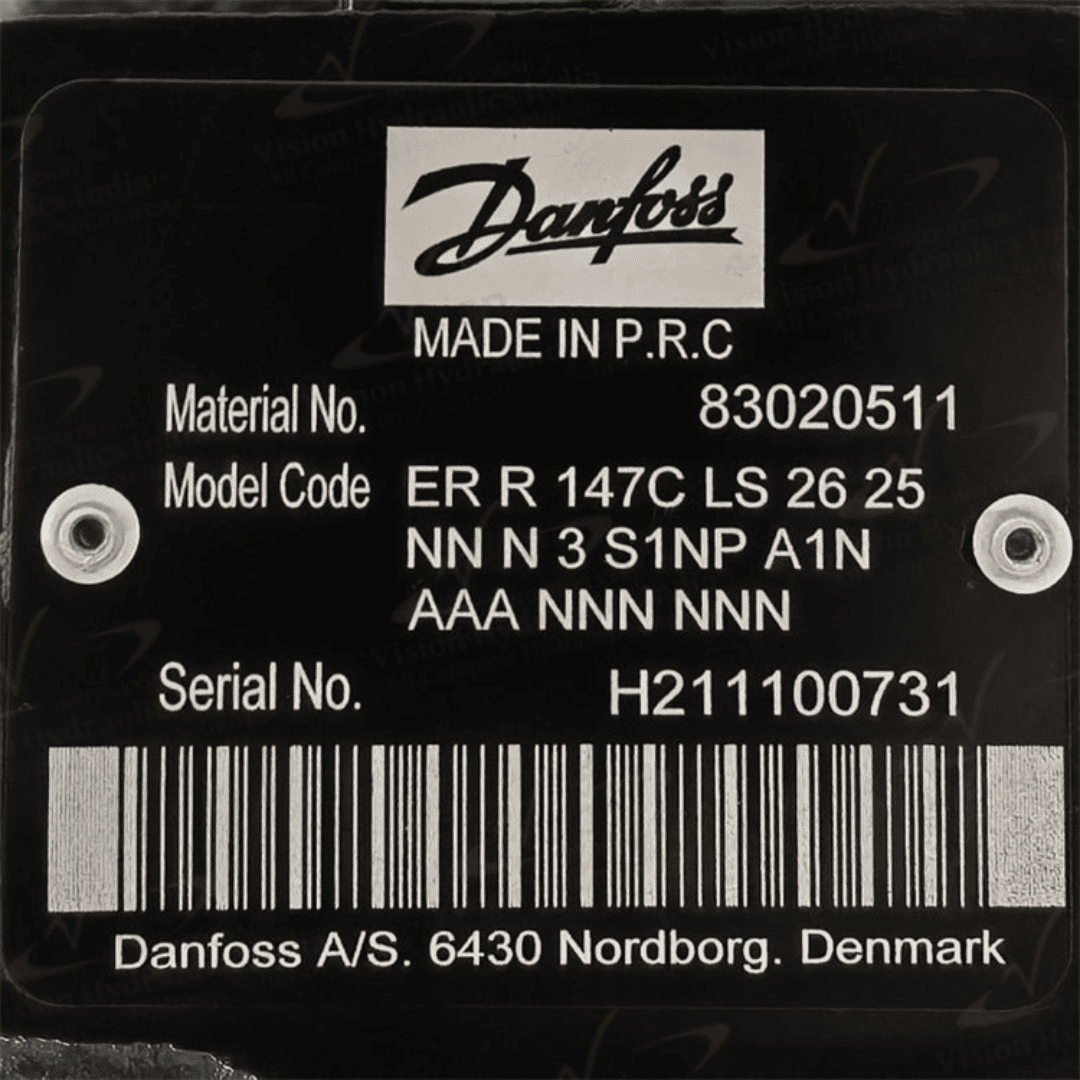

Model Code: ER-R-147C-LS-26-20-NN-N-3-S1NP-A1N-AAA-NNN-NNN

Axial Piston Variable displacement Pump
Series : 45 Frame E Series Pump
Model: E100B, E130B,
Minimum Pressure 310 Bar (Psi 4495)
Maximum Pressure 400 Bar (Psi 5800)
Maximum Pressure 350 Bar (Psi 5075)

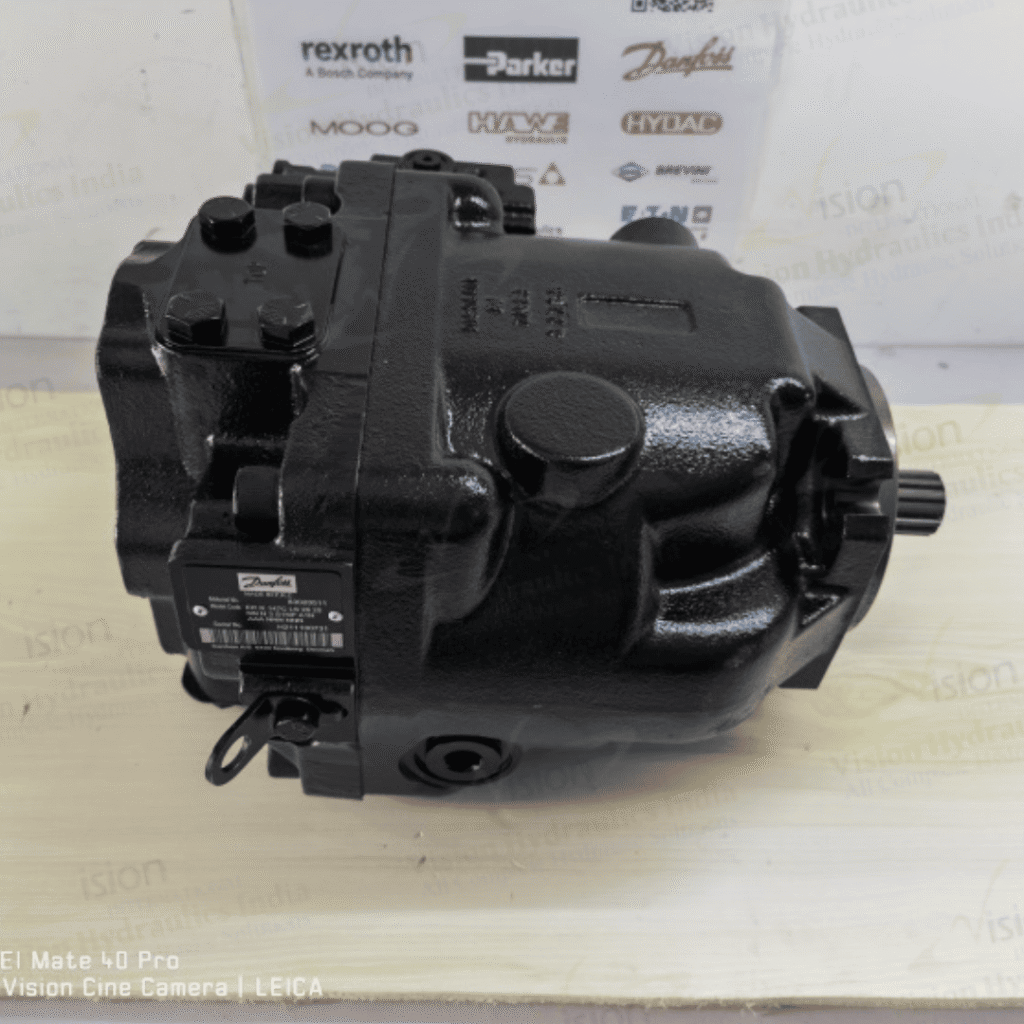

Danfoss E Frame Open Circuit Axial Piston Pump Series 45 is constructed in a single servo piston design with a cradle-type swashplate set in polymer-coated journal bearings. Danfoss ERR Hydraulic Pump It is available with a bias spring and internal forces that increase swashplate angle. The servo piston decreases swashplate angle, which allows a smooth and controlled fluid transfer. It has nine reciprocating pistons displace fluid from the pump inlet to the pump outlet as the cylinder block rotates on the pump input shaft.
